Yamaha Crux
Yamaha Crux
Yamaha Crux

Yamaha Crux

39,667 Onwords | Ex-Showroom Chennai

Overview

  • Milege:75 Kmpl
  • Engine displacement:106 cc
  • Power:7.6 PS / 7,500 rpm
  • Torque:7.5 N.m / 6,000 rpm
  • Gear box:Constant Mesh 4-Speed
  • Ground clearence:160 mm
  • Fuel Tank Capacity:11 Liter

Variants

Variants
 Variants  Showroom price  On road price
Crux 39667 44625

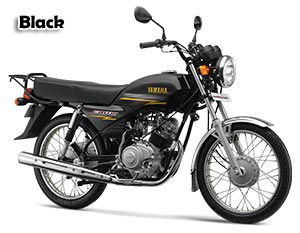

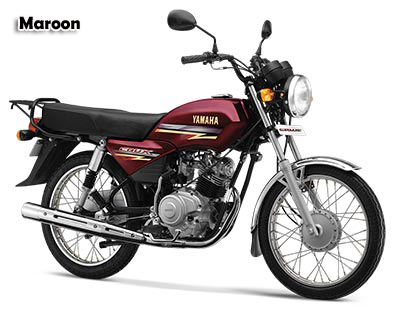

Colors & Images

Performance

Performance
Engine Air cooled, 4-stroke, SOHC
Engine displacement 106 cc
Maximum Power 7.6 PS / 7,500 rpm
Maximum Torque 7.5 N.m / 6,000 rpm
Top speed 90-95 Kmph
Acceleration (0-60Kmph) 9-10 s
Fuel Delivery System Carburetor
Cooling Air cooling
Ignition CDI (capacitor discharge ignition)
Compression Ratio 9.00:1
No of Cylinder 1
Bore & Stroke 49.0mm x 56.0mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box Constant Mesh 4-Speed
Clutch Wet Multiple-disc
Starting system Electric& Kick

Brake

Brake
Front Brake Drum
Rear Brake Drum
ABS no

Suspension

Suspension
Front Suspension Telescopic
Rear Suspension Swingarm

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.50 x 18
Rear Tyre 2.75 x 18
Wheel Type Spoke
Tubeless Tyres no

Battery

Battery
Battery Type MF
Capacity 2.5Ah
Voltage 12V

Instrument Console

Instrument Console
Speedometer Analog
Odometer Analog
Engine RPM meter -
Fuel Gauge Analog

Lighting

Lighting
Head Light 12V 35/35W x 1
Tail Light -

Dimension

Dimension
Overall Length 2,000 mm
Overall Width 735 mm
Overall Height 1,075 mm
Ground Clearance 160 mm
Seat Height 780 mm
Wheelbase 1,260 mm
Kerb/Wet Weight 113 Kg
Fuel Tank Capacity 11 Liter
Reserve Fuel Capacity 1.2 Liter
