58,565 Onwords | Ex-Showroom Chennai

Overview

  • Milege:70 kmpl
  • Engine displacement:124.7cc
  • Power:7.86 kw (10.54 bhp) @ 7500 rpm
  • Torque:10.54Nm @5500 rpm
  • Gear box:4 - Speed Constant Mesh
  • Ground clearence:157 mm
  • Fuel Tank Capacity:10.5 Liter

Variants

Variants
 Variants  Showroom price  On road price
CB SHINE (SELF-DRUM) 58565 65885
CB SHINE (SELF-DISC) 60871 68480
CB SHINE (SELF-DISC)-CBS 63768 71739
CB Shine (Self-Drum- Alloy)- New 58614 65085
CB Shine Self-Drum-Alloy 57088 63422

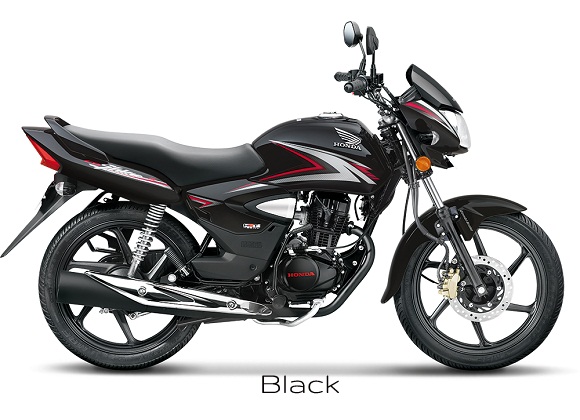

Colors & Images

Performance

Performance
Engine Air cooled, 4 stroke, SI engine
Engine displacement 124.7cc
Maximum Power 7.86 kw (10.54 bhp) @ 7500 rpm
Maximum Torque 10.54Nm @5500 rpm
Top speed 93kmph
Acceleration (0-60Kmph) 7-8s
Fuel Delivery System Carburetor
Cooling Air cooling
Ignition Digital CDI
Compression Ratio 9.2:1
No of Cylinder 1
Bore & Stroke 52.4X 57.8mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 - Speed Constant Mesh
Clutch Multiplate Wet
Starting system Self

Brake

Brake
Front Brake 240mm disc & Drum 130mm
Rear Brake Drum 130mm
ABS No

Suspension

Suspension
Front Suspension telescopic suspension
Rear Suspension single loaded hydraulic type (monoshock)

Wheels & Tyres

Wheels & Tyres
Front Tyre 80/100-18
Rear Tyre 80/100-18
Wheel Type Alloy
Tubeless Tyres Yes

Battery

Battery
Battery Type MF
Capacity 3Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analog
Odometer Analog
Engine RPM meter Analog
Fuel Gauge Analog

Lighting

Lighting
Head Light 12V 35/35W
Tail Light -

Dimension

Dimension
Overall Length 2014 mm
Overall Width 762 mm
Overall Height 1071 mm
Ground Clearance 157 mm
Seat Height 790 mm
Wheelbase 1266 mm
Kerb/Wet Weight 118 Kg
Fuel Tank Capacity 10.5 Liter
Reserve Fuel Capacity 1.3 Liter
